Description

Description

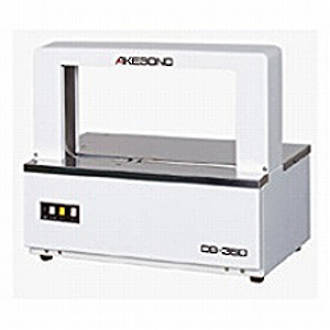

The OB360 is a high speed banding machine with up to 30 cycles per minute. Soft or elastic bundles can be banded without sacrificing speed. It appliesbanding to packages as small as 30mm (1-1/8") wide x 10mm (3/8") high and as big as 420mm (16-1/2") wide x 210mm (8-1/4") high. Either paper or film tape can be used without changing any parts. The new track design allows the use of 60 micron thick film, reducing cost and waste. Large dispenser is available as an option

Features
  • Up to 30 cycles per minute
  • Substantial banding without seal breakage by adjustable tape retraction time and cooling extensions, even on soft or elastic substance
  • Versatile design accepts broad range of package from width 30mm x height 10mm up to width 420mm x height 210mm
  • adjustable tensioning force from 5N up to 30N
  • User friendly to start, by simple push of the start key, stepping on the foot pedal or putting the package on the photo eye to begin the banding cycle.
  • Pause Mode to leave track open until removal of package on the table is available, to prevent biting by the closing guide into wound tape on the package
  • Operated with 60p thickness film tape. Allows economical running cost and reduced wastage.
  • Neat sealing with even melting
  • Less turning over of tape edge at sealing point with improved sealing heater design
Specifications
  • Film Tape: width 30mm thickness 60u~100u
  • Paper Tape: width 30mm thickness 110u
  • Maximum 30 cycles per minute capacity
  • Package Size: Minimum width 30mm x height 10mm Maximum width 420mm x height 210mm
  • Tension Force: 5~30N (0.5~3kgf.)
  • Power Supply: 1PH, 100~120V or 200~240V, 50/60 Hz
  • Machine Dimensions: 570mm width x 282mm depth x 488mm height
  • Net Weight: 28kgs
